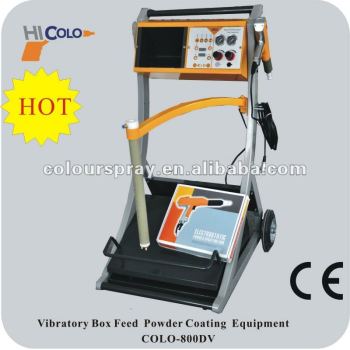

Vibratory Box Feed Powder Coaters

1,Vibratory Box Feed Unit  powder application systems2,Gema Optiflex model
3,0-100KV

4,is good for quick and easy color changes,It is designed to use the powder manufacturer’s original carton. An inclined vibration table allows complete emptying of the powder box via the fluidized suction tube

Technical Data:

this machine is good for  powder coating rims or powder coating wheels, and easy to chnge color

Manual Powder Coating System

largest electrostatic voltage: 90-100kv

Min. Compressor 87 PSI,

 Hose Length 17 Ft,

 For Use With All Powder Paints

Include powder spray gun, Control Unit, powder hopper, Powder Injector, Trolley and Vibration System, Cables and Hoses

→Technical Data

Electrical data

Power range                                   220V

Frequency                                     50HZ

Temperature range in use                      -10 °C+50 °C

Powder Gun

Gun weight:    ………………                    500G

Rated output voltage ………                      24VDC

Input voltage     ……………                       - 200kv

Maximum output current  ………                   180Ua(max)

Maximum output voltage…………                   0-100KV (  adjustable)

Maximum powder injection :………                    600g/min

Polarity ………………                                negative (-)

Pneumatic data

Maximum input-air pressure …………..                 10kg/cm

Optimum input-air pressure……..                        6kg/cm

Minimum input-air pressure   ……                      4kg/cm

Maximum water vapor content or compressed air …..      1.4g/N m3

Maximum oil vapor content of compressed air   ……..     0.1ppm

Maximum compressed-air consumption………            13.2 m3/h

Dimensions
