manual powder coating equipment

group name: Powder Coating Gun

Min Order: 1 piece

brand name: COLO powder coating equipment

model: COLO-800D, 800D

Nearest port for product export: SHANGHAI, NINGBO, QINGDAO, GUANGZHOU

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA

Acceptable payment methods: T/T, L/C, MoneyGram, PayPal, Westem Union

Export mode: Have the independent export and import right

update time: Mon, 25 Nov 2024 06:03:49 GMT

contact supplier

Paramtents

Condition New
Type Powder coating machine
Substrate Iron
Coating Powder Coating
Voltage 110V-220V
Power(W) 50W
Dimension(L*W*H) 120x79x73cm
Weight 55kg
Certification CE
Warranty 1 Year
After-sales Service Provided Overseas service center available
electrostatic painting equipment powder coating equipment

Packging & Delivery

Min Order1 piece

Briefing

1,Powder coating Machine
2.one-touch intelligent operation button,for powder coating
3,could powder spraying metallic powder

Detailed

powder paint gun powder coating system

Electrostatic Paint systems

electrostatic painting equipment

good choose for powder coating work

it can hold two contol unit and two set guns too

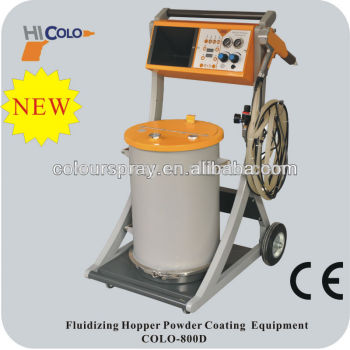

COLO-800D Manual Stand Unit powder coating system

New technology Powder feed system with air purge for faster, easier maintenance
Variety of custom-designed nozzles provide maximum versatility and highest powder delivery efficiency, even on difficult shapes
Pinch valve shuts off powder instantly
Modular hopper disconnects without tools,55L powder tank
Intelligent control unit with digital display for voltage ,touch key for easy and fast operation
full set included:

Control unit=1set

Including:powder spray gun=1

Spare parts of gun=(round jet nozzle=2, flat jet nozzle=1 ,spray head=6,)

Powder hose(5m)=1

fluidization windpipe(6mm)=1

power cable=1

earth wire with clamp=1

fuse =2

Powder hopper=1

Including:powder injector=1

insert sleeve of injector=2

powder injector connector=1

powder tube=1

black venting tube=1

venting tube connector=1, earth wire=1

air tube (8mm)=4

air tube (6mm)=1

Trolly=1

Including:

Gun handle=1, support=1, upright column=1,wheels=4,filter unit=1

fluidization adjustment=1

manual powder coating equipment

Technical data:

Electrical data

Mains input voltage: 220V/110V

Operating frequency:50HZ /60HZ

Powder:50W

Output voltage (to the gun):0-100KV ( adjustable)

Maximum output current (to the gun): 180UA(max)

Protection type:IP54

Approvals:CE Certification

Pneumatical data

Input pressure: min. 6 bar(87PSI)/max. 10 bar(145PSI)

Recommended input pressure: 7 bar(101.5PSI)

Max. water vapor content of the compressed

air 1.3 g/m³

Max. oil vapor content of the compressed air 0.1 mg/m³

Colo-800V:

Digital intelligent function model Box feed unit with Vibration funktion

manual powder coating equipment

COLO are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens,

cartridge type and cyclone recovery systems, spray booth, conveyor systems, Also we are supplier of powder coating,

powder filters, powder coating machine,powder coating equipment,powder coatting gun,Reciprocator, painting guns, pumps and their equipments.

manual powder coating equipment

We also can supply the spare parts replacement of famous powder coating machine, they can interchanged with original model and working well,but times lower price !!!
