paint booth

frame powder coating equipment ,Includes Powder Coating Booth, Electric or Gas Powder Oven, and manual powder coating gun.  We have the most popular configurations available and you can call us  008613967171593 for special combination you do not see posted.

1,The spray booth specification as follow:

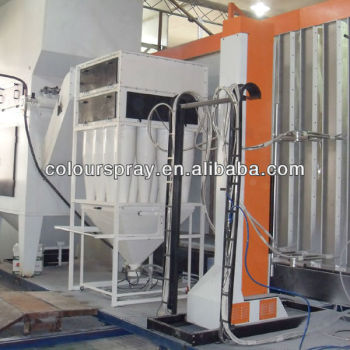

Electrostatic powder spraying booth

The powder booth fans draw air through filters and releases it through the top of the booth. It keeps your shop nice and clean,minimizing powder dust.

Benefits of our powder booth

• Operator Safety
• Environmental compliance
• Production capacity and operational efficiency
• Color changeover
• longer lasting, more durable, quieter

include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.

Data:

two door

Size:  (L4200*W1400*H2500MM)

Body material: δ=1.5mm galvanized plate

Pulse valves and solenoids

Air velocity 0.6m/s

Recycling fan1/set 4-72-3.6A   12KW

Fliter number 6pcs Flither

sizeφ325×900 fast-loading

light: 220v 36w 2 pcs

Voltage is 380V /50HZ (could make as you want)

During operation overspray powder accumulates on the cartridge filters. As the cartridge filters load, airflow decreases and the negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure maximum flitter life.

This Powder coating oven used for curing the workpiece which has been spraying during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

• Structure:consist of Body,insulation, cover, heater. use gas to create the energy ,through the circulating fan ,make the temperature in the oven to rise uniformly. Then make the temperature of workpiece to rise.

built-in track to roll your powder coating racks into the ovens could be ordered together as you required.

 3,Manual powder coating system

0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hope Feed - 55L
 Because this system is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.

COLO are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens, cartridge type and cyclone recovery systems, spray booth, conveyor systems,  Also we are supplier of powder coating, powder filters, powder coating machine,powder coating equipment,powder coatting gun,,Reciprocator, painting guns, pumps and their equipments.
